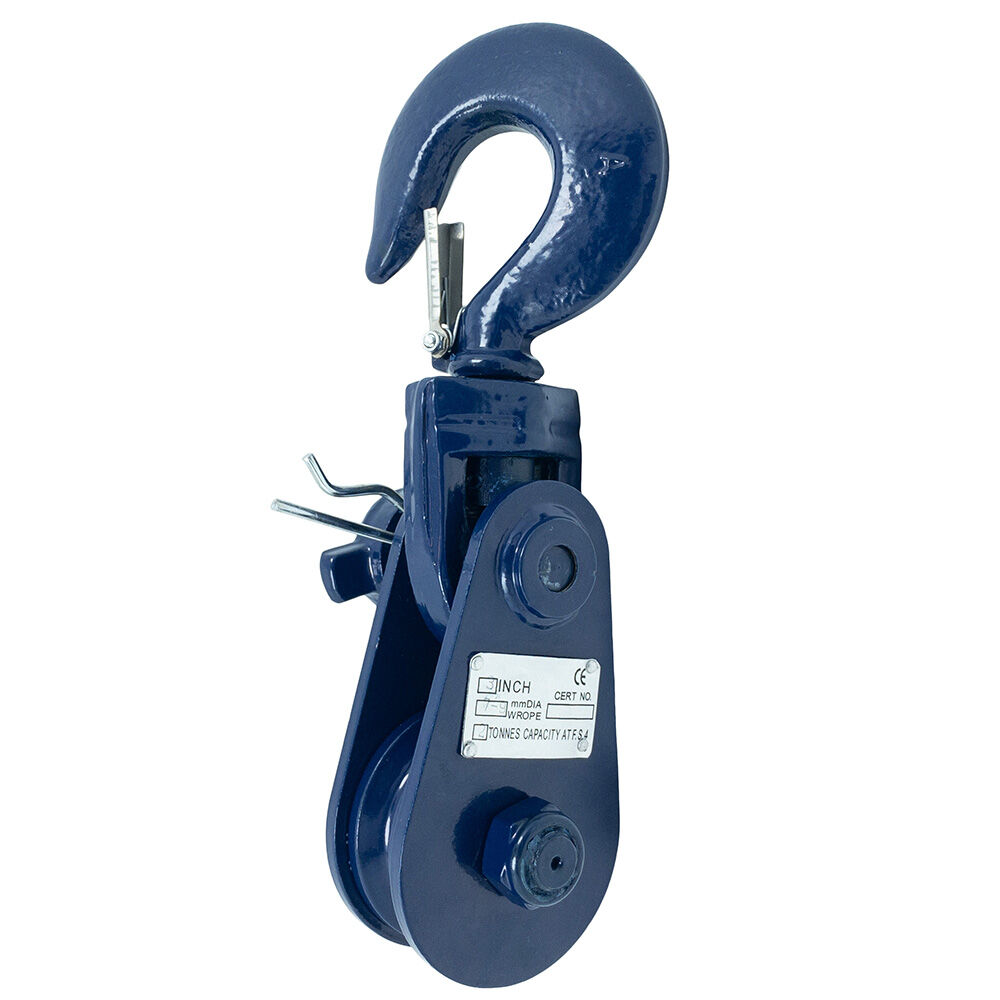

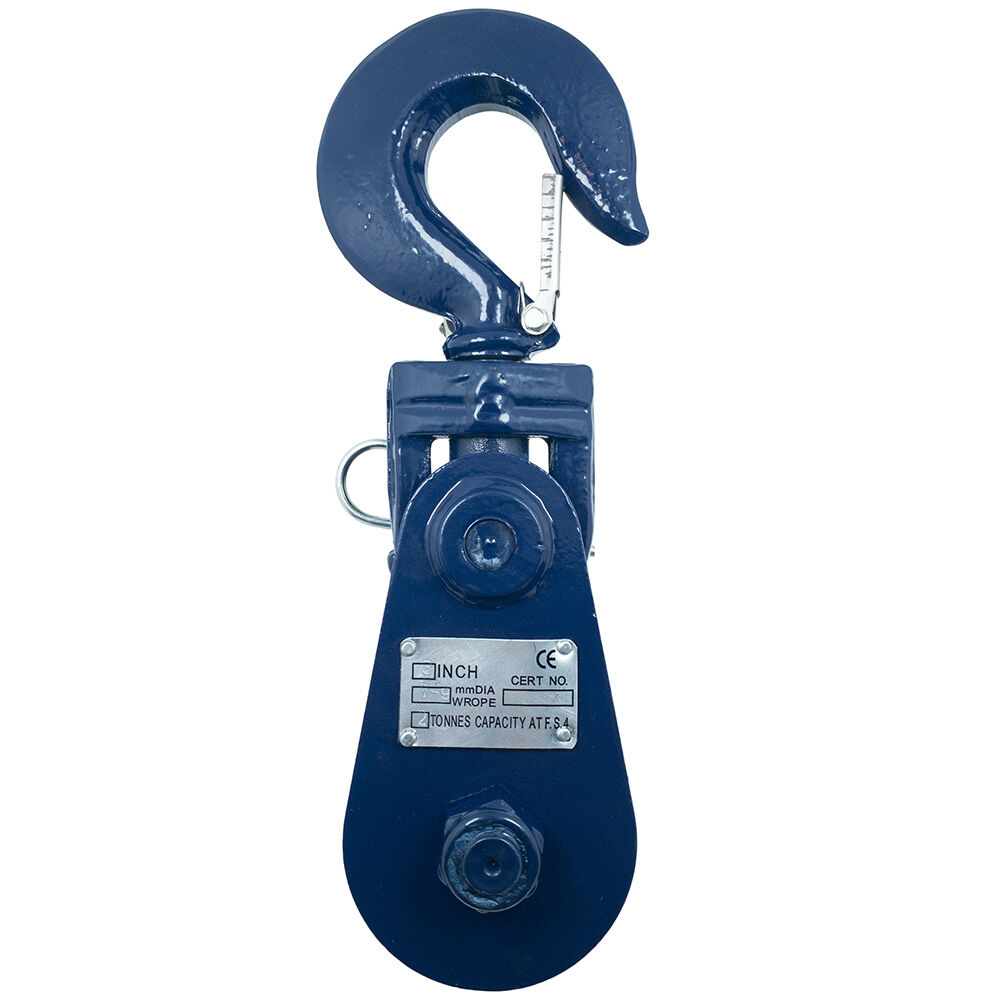

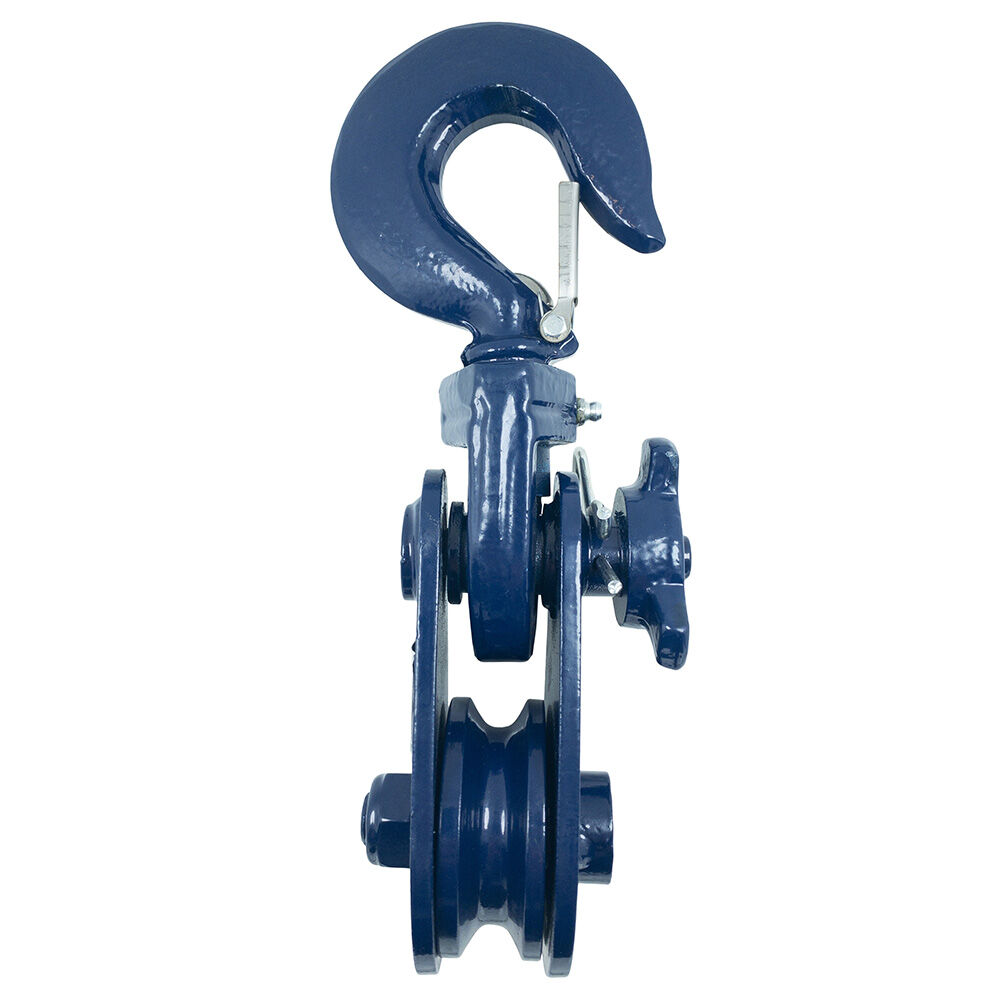

8" x 15 Ton W.L.L Wire Rope Snatch Block Swivel Hook 22mm-24mm Rope
8" x 15 Ton W.L.L Wire Rope Snatch Block Swivel Hook 22mm-24mm Rope
Head Load W.L.L | 15 Ton |
Sheave Diameter | 8" |

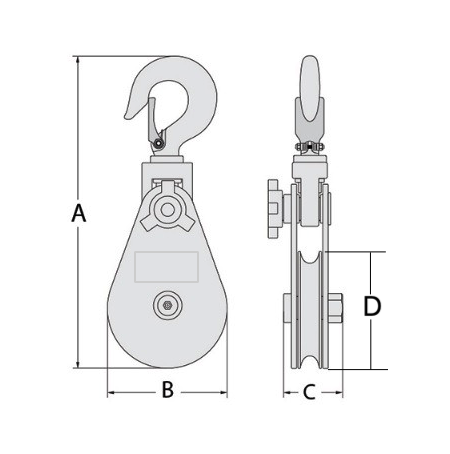

A | 620mm |
B | 210mm |
C | 98mm |
D | 203mm |
Weight | 20kgs |
Suits Wire Dia | 22mm - 24mm |
Lightweight heavy duty wire rope snatch block fitted with a swivel hook with a spring loaded safety catch
Working Load Limit for the head load
4:1 factor of safety
