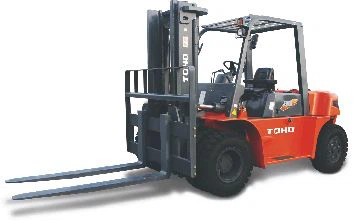

ZIXO internal combustion forklift is a transportation vehicle, used for loading and unloading, short distance transport, heavy lifting, is called industrial vehicle by the international organization for ISO/TC110 standard, used as transport machine, widely used in national economic departments, such as the railway station, port, airport, factory, warehouse etc. is efficient equipment mechanical for loading and unloading, stacking and short distance transport.
Datasheet For THLG20D(T)/THLG25D(T)/THLG30D(T)/THLG35D(T)
Model | THLG20D(T) | THLG25D(T) | THLG30D(T) | THLG35D(T) |
Rated Power(KW/rmp) | 36.8/2650 | 36.8/2650 | 36.8/2650 | 36.8/2400 |
Rated Capacity(KW/rmp) | 2000 | 2500 | 3000 | 3500 |
Power Type | Diese | Diese | Diese | Diese |
(J)Load Center(mm) | 500 | 500 | 500 | 500 |
(H1)STD Max Lifting Height(mm) | 3000 | 3000 | 3000 | 3000 |
(H3)Free Lifting Height(mm) | 110 | 110 | 125 | 170 |
(L5*W*T)STD Fork Size(mm) | 1070X120X40 | 1070X120X40 | 1070X125X45 | 1070X125X50 |
Mast tilt angle(deg) | 6/12 | 6/12 | 6/12 | 6/12 |
(L3)Front Overhang(mm) | 448 | 448 | 487 | 498 |
(L4)Rear Overhang(mm) | 500 | 500 | 550 | 580 |
Overall Dimension |
|
|
|
|
(L1)Over length(with fork)(mm) | 3670 | 3670 | 3857 | 3898 |
(W1)Over Width(with fork)(mm) | 1165 | 1165 | 1250 | 1250 |
(H2)STD Mast Lowered Height(mm) | 2135 | 2135 | 2132 | 2132 |
(H4)Overhead guard Height(mm) | 2130 | 2130 | 2150 | 2150 |
(R1)Min.turning radius(mm) | 2300 | 2300 | 2520 | 2530 |
Min.intersecting aisle(mm) | 3950 | 3950 | 4200 | 4225 |
Performance Data |
|
|
|
|
Max.traveling speed(km/h)load/unload | 18.5/20 | 18.5/20 | 18.5/20 | 18.5/20 |
Max.lifting speed(mm/s)load/unload | 560/580 | 560/580 | 500/520 | 400/420 |
Max.gradient(%) | 20 | 20 | 20 | 20 |
Self weight(kg) | 3260 | 3500 | 4200 | 4635 |
(L2)Axle distance（mm） | 1650 | 1650 | 1750 | 1750 |
STD Engine | XINCHAI C490BPG | XINCHAI C490BPG | XINCHAI C490BPG | XINCHAI C490BPG |
Rated power（KW） | 36.8 | 36.8 | 36.8 | 36.8 |
