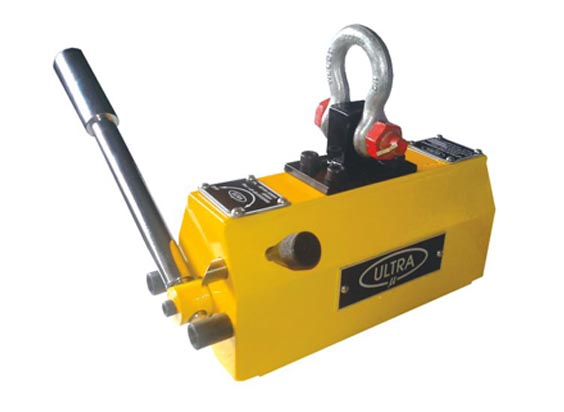

Series UL- 805

Used for lifting & handling of steel plates, heavy block & castings as well as heavy round or cylindrical parts.
The 1 : 3.5 or 1:3 time safety factor of the recommended load to the test load ensures use at optimal
working conditions even with substantial air gaps & surface conditions. Compact design, strong magnetic pull, total work safety
Easy operated lever for ON-OFF.
Spring loaded block at side for safety feature.
Suitable for Flat & Round jobs.
No damage on job during operation.
We Also Undertake Calibration with form No. 11 and Repairing of All Types of Permanent Magnetic Lifter

Sr. No.	Cat No.	Size ( mm ) Weight ( Height is without hook )	Lifting Capacity for flat job	Tested Capacity for flat job ( 1 : 3.5 Times )	Weight
0	UL - 80500	90L x 65W x 85H	100kg	350kg	4kg
1	UL - 80501	170L x 85W x 105H	200kg	700kg	9kg
2	UL - 80502	170L x 85W x 105H	250kg	875kg	9kg
3	UL - 80503	230L x 85W x 105H	300kg	1050kg	13kg
4	UL - 80504	230L x 85W x 105H	450kg	1575kg	14kg
5	UL - 80512	260L x 85W x 105H	500kg	1750kg	14kg
6	UL - 80505	255L x 110W x 130H	600kg	2100kg	25kg
7	UL - 80506	290L x 110W x 130H	700kg	2450kg	30kg
8	UL - 80507	350L x 130W x 135H	1000kg	3500kg	45kg
9	UL - 80508	395L x 150W x 160H	1500kg	5250kg	68kg
10	UL - 80509	460L x 170W x 185H	2000kg	7000kg	103kg
