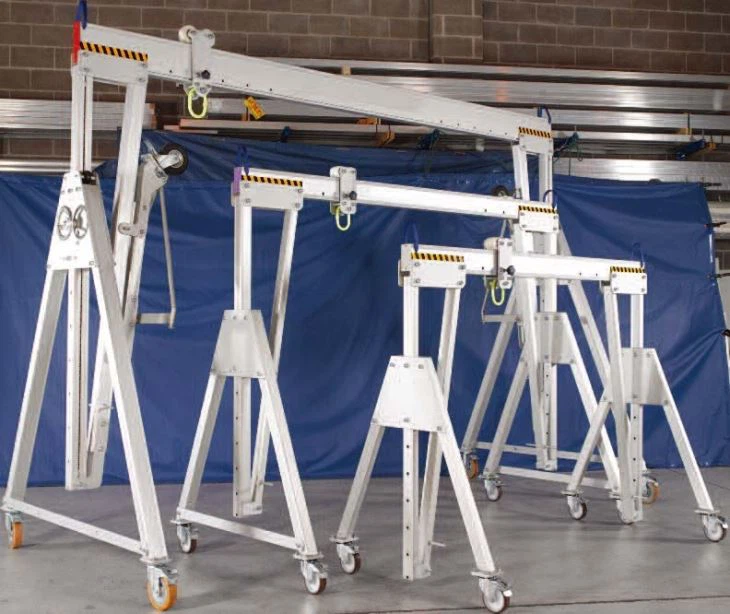

PORTAL GANTRY, ALUMINUM

Aluminum Portal Gantry

Featurea and Advantages:

1. Light weight, portable and easily manual assembly 4 bolt can combine all the parts together 2-3 minutes ro finish foot support assembly 360 rotated caster, can be located anywhere flat ground or rought ground are both workable. Simple structure, height and span length adjustable. Closed pulley type provide safety lift. Knockdown type, easy for carry and stock.

2. CE approved, conform to EN795 B.

3. Ergonomic design.

4. Capacity from 500kgs uo to 5000kgs.

5. S,M,I and T option, dimensions can also be customrized.

6. Bolt connect between stand and foot support provide high stability.

7. Anti-corrossion, easy clean, suitable for zinc plating factory or clean rooms.

Main Technical Data & Dimension

1. Efficitive girder length C=A-920mm

2. Attention: The height of the main girder can be adjusted, adjust spacing: 150mm or 200mm. Ratchet system can be assembled to reduce the lift effort.
