Tension Meter Load Link indicator

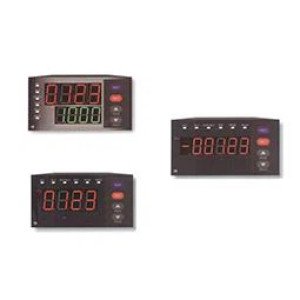

Display controller
TGK-2 four (or five) digits single display controller

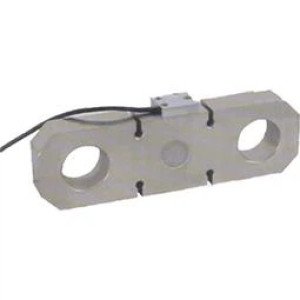

Load cell(Tension sensor) TJL-7

Range from 2T~ 50T

Central board to adopt the structure of high precision,
dynamic effects, easy to install. After a good deal of
moisture-proof seal to adopt to a variety of crane
hoisting of the poor working environment.

Main technical data

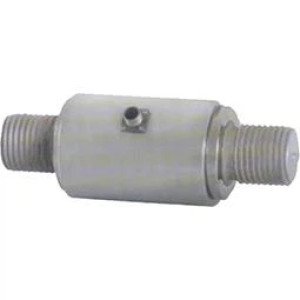

Load cell(Tension sensor) TJL-8

Stud type girder enables good stability ,
External thread connection make the installation easily
Used for measuring of electric weighing apparatus,
lifting equipment etc.

Main technical data

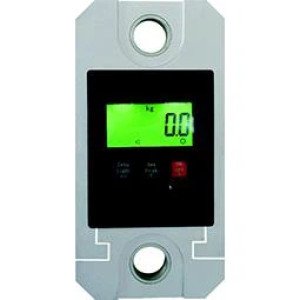

Load indicator CLY-AL
●Aerial aluminum alloy housing, light weight, anti-dust and
antimagnetic
●6 digit 18mm wide angle LCD display with backlighting
●4xAAAlkaline batteries or nickel hydrogen rechargeable batteries
●Superior high precision, preferable to weigh the force or the gravity
●In weighing model performed like a crane scale. the dynamometer has the functions of tare, display the gross weight and net weight
●The dynamometer has the functions of overload alarm, power
consummation indication
●Conform to CE standard

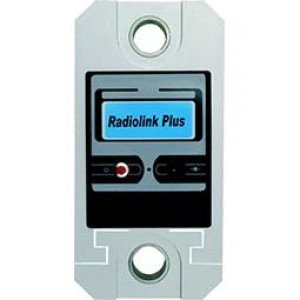

Load indicator CLY-ALP
●The wireless dynamometer is composed by the unique loadcell
and wireless palm indicator
● With the load cell not over 2kg and portable palm indicator, the
dynamometer can be used in outdoors
● Over 250 feet transmit distance, it protects you from unsafe or
polluted environment
● With superior high precision, low power consummation and wireless
transmission, this product has vast weighing application
●Easy installation with the bolt and the overload protection make
you use it comfortable
●Built-in lithium battery, available for quick charge with 7.2V charger
●The battery can support 24 hours of continuous working after fully charged

Load indicator CLY-AS
●Strong and light dynamometer to weigh the force of gravity or the pulling force
●Power supply: 4×AA batteries
●Superior alloy steel, preferable to dynamometers with larger capacity
●In weighing the pulling force, the dynamometer has the functions of peak
value hold, overload alarm and stable weight indication.
●In weighing the force of gravity, the dynamometer support kg/lb conversion
and tare, zero functions
●6 digit 18mm wide angle LCD display with LED backlighting

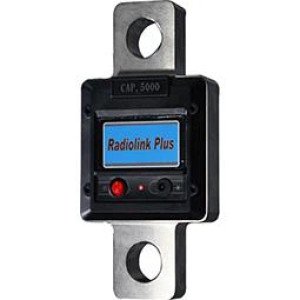

Load indicator CLY-ASP
●Sturdy & portable wireless dynamometer
●Alloy steel with good quality for larger capacity
●More convenient in application with hand-held PII
wireless indicator
●Peak function to record the largest weight value
●Low battery indication on both load cell and PII indicator
