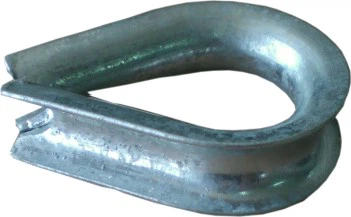

European Ordinary Wire Rope Thimble
European Ordinary Wire Rope Thimble
European Ordinary Wire Rope Thimble
Size | Dimension | Weight/100pcs | ||||
(mm) | A | B | C | D | E | (kg) |
4 | 25 | 20 | 11 | 7 | 4 | 1.00 |
5 | 31 | 24 | 15 | 8 | 5 | 1.20 |
6 | 37 | 29 | 18 | 10 | 6 | 1.70 |
7 | 44 | 34 | 22 | 11 | 7 | 2.60 |
8 | 51 | 38 | 24 | 12 | 8 | 3.10 |
10 | 64 | 46 | 30 | 14 | 10 | 6.80 |
12 | 76 | 57 | 38 | 18 | 12 | 9.30 |
14 | 82 | 60 | 40 | 20 | 14 | 12.0 |
16 | 89 | 64 | 42 | 22 | 16 | 13.9 |
18 | 102 | 69 | 45 | 26 | 18 | 22.0 |
20 | 115 | 79 | 51 | 28 | 20 | 29.1 |
22 | 127 | 89 | 54 | 30 | 22 | 39.9 |
24 | 140 | 102 | 64 | 34 | 26 | 48.4 |
26 | 152 | 105 | 64 | 34 | 28 | 66.2 |
28 | 165 | 115 | 73 | 38 | 30 | 73.6 |
30 | 178 | 121 | 79 | 44 | 32 | 101.0 |
32 | 203 | 133 | 93 | 46 | 34 | 124.5 |
