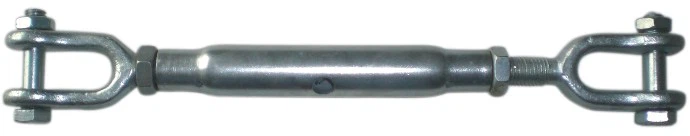

Closed Body Turnbuckle (RIGGING SCREW)
The following types are available
Jaw/Jaw, Eye/Eye,Jaw/Eye
Options: locknuts
Finish: self-colored or galvanized
Size | W.L.L. | Min.len | Max.len | Dimension(mm) | Weight(kg/pc) | ||||||||||
(mm) | (t) | (mm) | (mm) | A | L | C | E | N | M | d | D | H | E/E | E/J | J/J |
6 | 0.2 | 170 | 252 | 6 | 102 | 12 | 5 | 7 | 18 | 6 | 15 | 8 | 0.10 | 0.11 | 0.18 |
8 | 0.3 | 185 | 270 | 8 | 110 | 16 | 6 | 9 | 21 | 6 | 19 | 10 | 0.20 | 0.23 | 0.26 |
10 | 0.5 | 240 | 355 | 10 | 152 | 21 | 8 | 11 | 25 | 8 | 25 | 11 | 0.25 | 0.30 | 0.38 |
12 | 0.7 | 280 | 420 | 12 | 175 | 25 | 9 | 15 | 31 | 10 | 30 | 14 | 0.70 | 0.80 | 0.90 |
16 | 1.2 | 352 | 542 | 16 | 229 | 27 | 10 | 18 | 39 | 12 | 41 | 16 | 1.20 | 1.40 | 1.60 |
20 | 1.5 | 370 | 555 | 20 | 229 | 32 | 11 | 22 | 44 | 16 | 51 | 22 | 1.80 | 2.00 | 2.20 |
22 | 2.2 | 450 | 690 | 22 | 305 | 34 | 11 | 24 | 48 | 18 | 51 | 22 | 2.80 | 3.20 | 3.50 |
24 | 3.2 | 480 | 735 | 24 | 325 | 42 | 12 | 26 | 52 | 20 | 56 | 25 | 3.60 | 4.00 | 4.40 |
27 | 3.8 | 540 | 810 | 27 | 356 | 45 | 13 | 30 | 60 | 22 | 57 | 28 | 4.20 | 4.50 | 5.40 |
33 | 5.0 | 585 | 890 | 33 | 381 | 48 | 14 | 36 | 70 | 27 | 65 | 35 | 6.20 | 7.00 | 8.00 |
36 | 6.0 | 605 | 910 | 36 | 381 | 60 | 16 | 40 | 78 | 30 | 65 | 36 | 7.80 | 8.00 | 9.50 |
39 | 7.0 | 654 | 955 | 39 | 406 | 60 | 16 | 44 | 82 | 33 | 74 | 38 | 10.0 | 11.4 | 13.0 |
45 | 8.5 | 720 | 1010 | 45 | 407 | 60 | 20 | 48 | 100 | 39 | 90 | 45 | 15.0 | 16.5 | 18.0 |
50 | 10 | 735 | 1040 | 50 | 407 | 76 | 20 | 50 | 104 | 42 | 100 | 45 | 18.0 | 21.0 | 24.0 |
