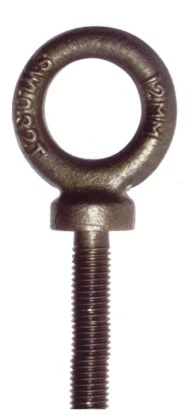

Long Shank Dynamo Eye Bolts
Long Shank Dynamo Eye Bolts
Long Shank Dynamo Eye Blots
B.S.W. THREAD
Size | Vertical WLL | Dimension(in) | ||||||
(in) | (t) | A | B | C | D | E | G | H |
5/16 | 0.15 | 5/16 | 7/8 | 3/8 | 1-1/16 | 4 | 3/4 | 1/4 |
3/8 | 0.25 | 3/8 | 7/8 | 3/8 | 3/8 | 4 | 3/4 | 1/4 |
1/2 | 0.50 | 1/2 | 1-1/16 | 7/16 | 7/16 | 4 | 1 | 5/16 |
5/8 | 0.80 | 5/8 | 1-1/4 | 1/2 | 1/2 | 4-1/2 | 1-1/8 | 3/8 |
3/4 | 1.20 | 3/4 | 1-9/16 | 11/16 | 11/16 | 5 | 1-7/16 | 7/16 |
1 | 2.20 | 1 | 2 | 13/16 | 13/16 | 5 | 1-5/8 | 1/2 |
METRIC COARSE THREADSize | Vertical WLL | Dimension(in) | ||||||
(mm) | (t) | A | B | C | D | E | G | H |
8 | 0.15 | 8 | 22 | 9.5 | 27 | 100 | 19 | 6 |
10 | 0.25 | 10 | 22 | 9.5 | 27 | 100 | 19 | 6 |
12 | 0.32 | 12 | 29 | 11 | 35 | 100 | 25 | 8 |
16 | 0.63 | 16 | 32 | 13 | 41 | 114 | 29 | 9.5 |
20 | 1.25 | 20 | 41 | 16 | 54 | 127 | 35 | 11 |
24 | 2.00 | 24 | 51 | 19 | 64 | 127 | 41 | 13 |
