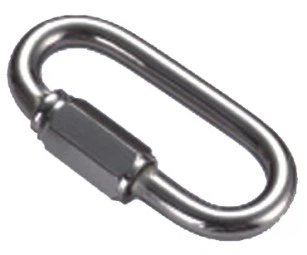

Quick Link, Stainless Steel, AISI304 or 316
Quick Link, Stainless Steel, AISI304 or 316
Quick Link, Stainless Steel
Size | Dimension(mm) | W.L.L | N.W. | ||||||
(mm) | A | B | C | D | L | L1 | E | (lbs) | (g/pc) |
3.5 | 17 | 10 | 5 | 3.5 | 36 | 29 | 11 | 175 | 8.1 |
4 | 19.5 | 11.5 | 5.5 | 4 | 39.5 | 31.5 | 12.5 | 500 | 12 |
5 | 23 | 13 | 6.5 | 5 | 48.5 | 35.5 | 16 | 650 | 21 |
6 | 26.5 | 14.5 | 7.5 | 6 | 57 | 45 | 19 | 875 | 35.5 |
7 | 30 | 16 | 8.5 | 7 | 66 | 52 | 21.5 | 1200 | 66 |
8 | 33.5 | 17.5 | 10.5 | 8 | 74 | 58 | 24 | 1525 | 76 |
9 | 37 | 19 | 11 | 9 | 80 | 62 | 26 | 1975 | 111 |
10 | 40.5 | 20.5 | 12 | 10 | 89 | 69 | 29 | 2300 | 137 |
12 | 47.5 | 23.5 | 15 | 12 | 104.5 | 80.5 | 33 | 2500 | 253 |
14 | 54.5 | 26.5 | 17 | 14 | 121 | 93 | 38.5 | 2800 | 358 |
