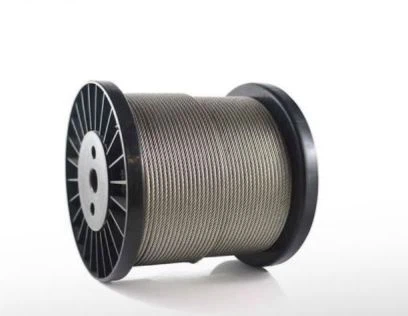

Stainless Steel Wire Rope, Steel Strand 1x19 AISI304, AISI316 Galvanized Carbon Steel Wire Rope
Stainless Steel Wire Rope, Steel Strand 1x19 AISI304, AISI316 Galvanized Carbon Steel Wire Rope
Strand 1x19
Usage: chemecal, engineering, aviation, machine, instrument
Specification |
Normal Diameter | Approx Weight | Nominal Tensile Strength | |
Minimum Breaking Strength (kN) | |||
mm | kg/100m | 1570N/mm2 | 1770N/mm2 |
1 | 0.5 | 0.825 | 0.93 |
1.2 | 0.71 | 1.19 | 1.34 |
1.5 | 1.11 | 1.86 | 2.09 |
2 | 1.98 | 3.3 | 3.72 |
2.5 | 3.1 | 5.15 | 5.81 |
3 | 4.46 | 7.42 | 8.37 |
3.5 | 6.06 | 10.1 | 11.4 |
4 | 7.93 | 13.2 | 14.9 |
5 | 12.4 | 20.6 | 23.2 |
6 | 17.8 | 29.7 | 33.5 |
7 | 24.3 | 40.4 | 45.6 |
8 | 31.7 | 52.8 | 59.5 |
9 | 40.1 | 66.8 | 75.3 |
10 | 49.5 | 82.5 | 93 |
11 | 59.9 | 99.8 | 114 |
12 | 71.3 | 119 | 135 |
